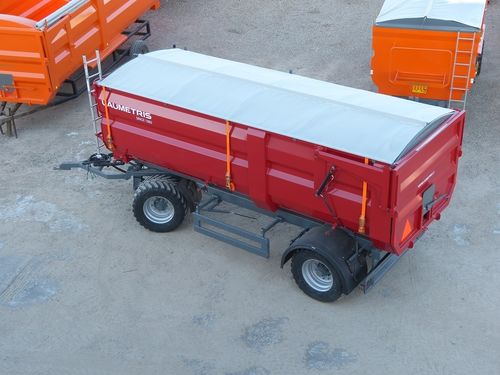

Dump trailer PTL-T series
tipping2-axleagricultural

Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural
Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural
Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural - image - 2
Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural - image - 3
Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural - image - 4
Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural - image - 5
Dump trailer - PTL-T series - Laumetris Ltd. - tipping / 2-axle / agricultural - image - 6
Add to favorites
Compare this product


Characteristics

Construction
dump, tipping
Number of axles
2-axle
Application
agricultural
Payload
12 ton, 14 tons, 16 ton
Brake system
with hydraulic braking, with pneumatic braking
Empty weight

4,450 kg, 5,100 kg, 5,700 kg
(9,810.6 lb, 11,243.6 lb, 12,566.3 lb)

Recommended power

100 ch, 110 ch, 130 ch
(100 hp, 110 hp, 130 hp)

Load volume

14 m³, 17 m³, 19 m³
(494.405 ft³, 600.349 ft³, 670.979 ft³)

Loading case lenght

5,000 mm, 5,870 mm, 5,970 mm
(196.9 in, 231.1 in, 235 in)

Loading case width

2,060 mm
(81.1 in)

Loading case hight

1,355 mm, 1,405 mm, 1,505 mm
(53.3 in, 55.3 in, 59.3 in)

Description

With over 18 years of manufacturing tractor drawn semi-trailer, Laumetris Ltd. has accumulated a lot of experience in this field and has achieved a very well-known brand of high quality semi-trailers producer in Baltic States. Universal back tipping semi-trailers are the most popular. Semi-trailers are produced from 2 – 40 cubic meters capacity. It has strong frame, body, wide wheels, spring chassis and rich standard equipment. Special interpretation semi-trailers are also part of Laumetris Ltd. production. Specially designed construction semi-trailers with thicker and harder metal for transportation of construction materials, expanded volume and flotation semi-trailer for transportation of peats, sugar beets and green mass. Furthermore, company produces platform semi-trailers, which are for transportation of containers and big bags with vegetables, fertilizers; bales of straws, stubble, green mass. In addition, it is possible to order specially designed trailers with various types of body, chassis and frame for any work, meeting your high requirements. Exclusive properties of Laumetris Ltd semitrailers: • Solid length and width side board without any vertical bracket; • Side board has bendings which increases resistance to deformation; • Rear tailboard is easy to open and close with hydro cylinders while sitting in a tractor; • Semitrailers are mounted with tires which are more than 500 mm width and have less pressure to soil; • Spring chassis absorbs shock from rough ground and does not transfer any vertical motions to tractor throw drawbar; • Springs on the hook also reduce shock and soften load for tractor;
