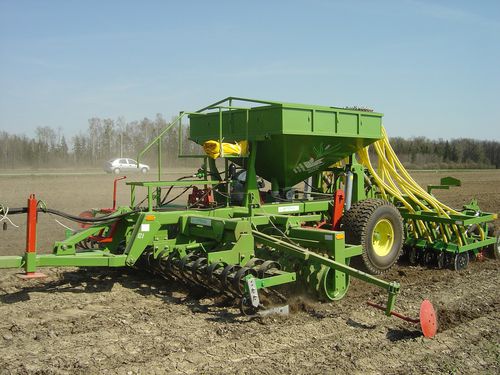

Pneumatic seed drill DS - 4

disctowed

Disc seeders Laumetris Ltd. produces pneumatic disc seeders DS-3, DS-4, DS-6, which are used for various cultures sowing in plowed or harrowed fields. This sowing equipment hoes, collates, compacts, sows and presses up seeds. Soil is hoed and collated by two rows of disc leveler, hoeing depth is regulated by hydraulic cylinder. While operating, disc seeder bases on front support roller, which takes most of sowing machine’s weight. In addition, it collates soil and prepares goods conditions for sowing process. Discs cut surface of soil and insert seeds into regulated depth of slots. After that, wheels press ground around sowed seeds. Every disc tine has rubber amortization. DS has pneumatic copying system, which allows discs working separately. Disc seeders are manufactured with Germany Acord company’s pneumatic seeds distribution system. Sowing is being controlled by computer system “Master seed”. Technical details: seeding rate: 1.5 – 350 kg/ha; tank capacity: 2 – 3,2 m3; distance between lanes: 12,5 cm; operational speed: up to 15 km/h; diameter of seeding discs: 410 mm; disc roller diameter: 460 mm Model DS - 4 Type trailed Operational width, m 4 Capacity, m3 2 Sowing disc, pcs 24 Sowing discs spacing, mm 125 Crossboard, pcs 20 Disc diameter, mm 510 Transportation width, m 4 Mass, kg 2750 Min. tractor power, HP 150 - 180
