Mounted mulcher TFA
hammerfor orchardsPTO-driven

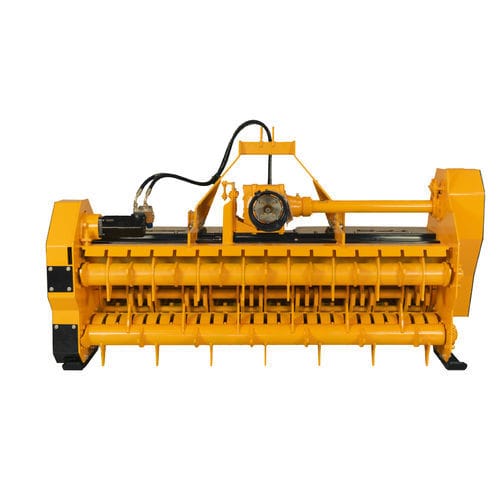

Mounted mulcher - TFA  - Lopez Garrido - hammer / for orchards / PTO-driven
Mounted mulcher - TFA  - Lopez Garrido - hammer / for orchards / PTO-driven
Mounted mulcher - TFA  - Lopez Garrido - hammer / for orchards / PTO-driven - image - 2
Mounted mulcher - TFA  - Lopez Garrido - hammer / for orchards / PTO-driven - image - 3
Mounted mulcher - TFA  - Lopez Garrido - hammer / for orchards / PTO-driven - image - 4
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
for orchards
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

2,000 mm
(78.74 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 180 ch
(180 hp)

Min.: 115 ch
(115 hp)

Weight

1,580 kg
(3,483.3 lb)

Description

freewheel gearbox with cardan double pick-up feeder interchangeable blades frame made from SWEDISH STEEL Mulcher designed for medium-power tractors. Especially for working on vine shoots and fruit tree such us olive trees, orange trees, lemon trees,almond trees, etc. Maximum branch diameter of 20 cm. • A high elastic limit Swedish steel frame • The mulcher can be hooked up in the front position, rear position or in the reverse position • Height-adjustable side skids and rear wheels • Double reversible chain-driven pick-up feeder• Pick-up speed controller • 6-belt system to ensure maximum power transmission from the speed increaser to the rotor • Bondioli & Pavesi speed increaser with freewheel • Protective cap • High-strength forestry rotor • Reversible blades made from Hardox 500 and triple row of counter blades • Blades arranged helically for lower power consumption • It has a rear hood for internal machine maintenance • Working speed of 1 to 5 km/h. • User manual, guards and safety stickers • CE Marking. optional CODE DESCRIPTION 040474580 Extra three-point hitch 040473248 Front pneumatic castor wheels 3030030003 Pneumatic wheels unit
