Mounted mulcher TSP
hammerfor orchards24 hammers

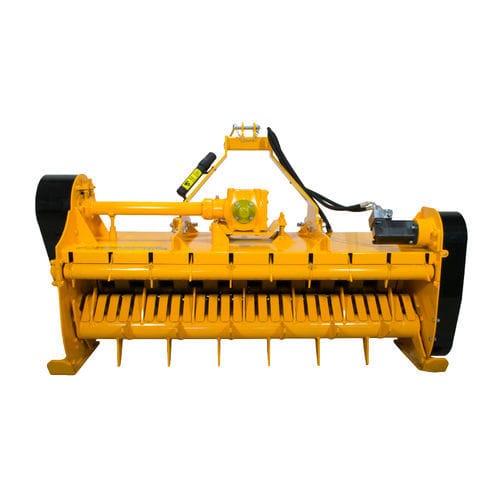

Mounted mulcher - TSP - Lopez Garrido - hammer / for orchards / 24 hammers
Mounted mulcher - TSP - Lopez Garrido - hammer / for orchards / 24 hammers
Mounted mulcher - TSP - Lopez Garrido - hammer / for orchards / 24 hammers - image - 2
Mounted mulcher - TSP - Lopez Garrido - hammer / for orchards / 24 hammers - image - 3
Mounted mulcher - TSP - Lopez Garrido - hammer / for orchards / 24 hammers - image - 4
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
for orchards
Number of hammers
24 hammers, 30 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

1,500 mm, 1,800 mm
(59.06 in, 70.87 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 130 ch
(130 hp)

Min.: 70 ch
(70 hp)

Weight

1,029 kg, 1,160 kg
(2,268.56 lb, 2,557.36 lb)

Description

side skids pick-up feeder fully reversible machine frame made from SWEDISH STEEL Trituradora diseñada para tractores de media potencia. Especially for working on olive pruning waste, vine shoots, fruit pruning waste, etc. Maximum branch diameter of 12 cm. • Available with forest or normal rotor • A high elastic limit Swedish steel frame • Side skids • Height-adjustable rear wheels • Protective bands • Double pick-up for shredding in separate chamber • Grille sieving • Pick-up hydraulic speed controller • Fully reversible machine • Bondioli&Pavesi gearbox with free-wheel and cardan • Protective cap • User manual and safety stickers • CE Marking. optional CODIGO DESCRIPCIÓN 3030030030 25 mm retaining sieve TSP 3030030038 35 mm retaining sieve TSP 3030030043 45 mm retaining sieve TSP 041568291 Special three-point hitch for fruit trees 040474580 Extra three-point hitch 040473248 360º caster wheels unit 3030030044 Pneumatic wheels unit TSP 090670003 Vineyard unit (feeder retaining pins + lugs) 040478459 Difference replacement gearbox 540 to 1000 RPM

VIDEO
