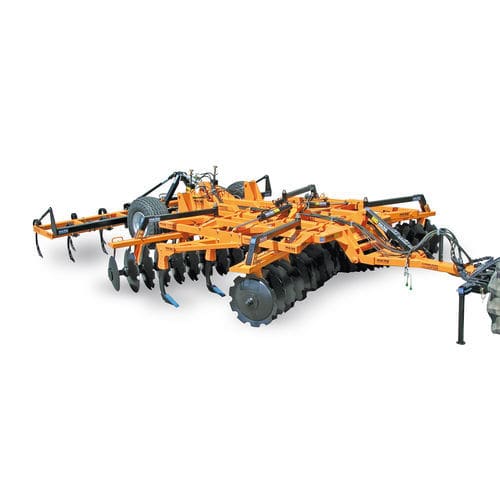

Towed disc harrow CDC series

with rollerwith hydraulic adjustment

Innovative machine for working the soil, ideal for mixing the soil and the drilling depth. Optimum for breaking the clods and also for obtaining a perfect plan of work. This equipment develops a substantial demolition of the working time, with a very significant save in fuel, manpower and wear of the tractor. On the rear, the equipment has a III points linkage, furnished on series, for completing the work - STANDARD EQUIPMENT - Combined, half-brought machine, made with the following basic structure: - • Tractor arm linkage • Front discs manually adjustable in 5 different positions • Rear discs manually adjustable in 5 different positions • Hydraulic chariot for transport and regulation of working depth • III points linkage for rear application - In the intermediate position between the two discs, the machine can be equipped with a grubber kit with fixed anchors or with a toothed flat breaking discs. On the rear the machine can be equipped with a grubber/ subsoiler (square spring mm 30×30 or fixed anchors rigid type) or breaking kit (made of a double rows of toothed flat discs and a cage roller Ø 500 mm)
