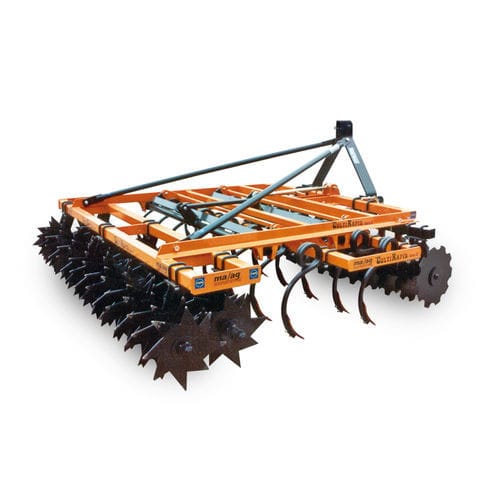

Mounted field cultivator CTR series

with roller3-point hitchrigid tine

Innovative equipment for the working land and the final preparation of the seed bed. Unique in its genre, on the brought version, it is a very good alternative to the rotary harrow also for the low HP, because it develops a cutting down of the working costs linked to an excellent valuation index of field result. Working speed from 5 to 15 km/h. STANDARD EQUIPMENT • Brought version with III point linkage. • Fixed frame. • Flat discs diam. 510 mm mounted on supports with bearings protected by greaser system ma/ag. • Cultivator with flex springs 32x12 mm arranged on 3 working rows or grubber with square springs 25x25 mm, arranged on 2 working rows. Manual depth working adjusting by adjustable III point (hydraulic at request). • Double discs composed of N. 2 rows of star breaking self-cleaning discs diam. 510 mm mounted on supports with bearings protected by greaser system ma/ag. • On the rear levelling and stabilizer roller, very important in order to obtain a brilliant result. Available, at request, in the following versions: cage ø 400 - paker - Spike or smooth.
