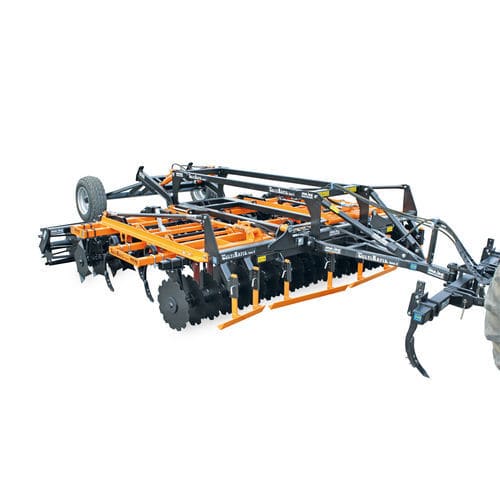

Towed field cultivator CTRI series

with rollerrigid tinefolding

Innovative equipment for working the land and the final preparation of the seed bed. Unique in its genre, on the brought version, it is a very good alternative to the rotating harrow, because it develops a cutting down of the working costs linked to an excellent valuation index of field result. Working speed from 5 to 15 km/h. STANDARD EQUIPMENT • Hydraulic foldable frame into 2 section. • Tractor arm linkage. • Couple of breaking share (at demand). • Leveling bar, rigid and adjustable on high. • Discs made of flat discs diam. 510 mm mounted on supports with bearings protected by greaser system ma/ag. • Cultivator with flex springs 32x12 mm, arranged on 3 working rows or grubber with square springs 25x25 mm, arranged on 2 working rows. Manual depth working adjusting by adjustable III point (hydraulic at demand). • Double discs composed of n.2 ranges of star breaking self-cleaning discs diameter 510 mm mounted on supports with bearings protected by greaser system ma/ag. • On the rear levelling and stabilizer roller, very important for obtaining a brilliant result. Available, at request, in the following versions: cage - packer - Spike or smooth. • Chariot with hydraulic movement transport on road. • Light bar kit.
