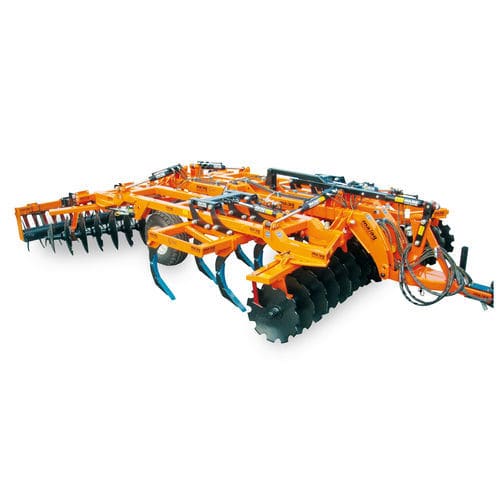

Towed field cultivator GMC series

with rollerrigid tinefolding

Combined equipment created for the double layer working, very useful on very hard soils. It can be used both as an alternative to the plough and in the minimum tillage, thanks to the hydraulic depth regulation of the anchors group. Available in brought on lift version and trailed version with double beam frame and vertical folding. • Towing beam • Hydraulic regulation for balancing the equipment • Hydraulic closing into 2 sections for the transport on road • Front toothed discs, diam. 660 mm, thickness 6 mm, disc distance 230 mm (or diam.710 mm, thickness 7 mm, disc distance 270 mm) at demand. Steel shaft 40x40 mm. Swiveling supports with conical bearings and interchangeable carter - system ma/ag. Regulation of the working angle - manual in different positions • Grubber with 9 or 11 anchors with hydraulic depth regulation. Anchors arranged on 2 working rows. Safety device with a shear bolt, wear protection of the anchors, reversible and interchangeable steel shares. • Hydraulic chariot for the transport on road with wheels 400/60-15.5 or similar mounted on hub with 8 holes • Front smooth discs diam. 660 mm thickness 6 mm, disc distance 230 mm. Steel shaft 40x40 mm. Swiveling supports with conical bearings and interchangeable carter - system ma/ag. Hydraulic regulation of the working angle from the driver. • Light bar kit. • On the rear it is possible to equip the machine with breaking, levelling Spike roller with soil scrapers and regulation of the incidence of work by a perforated plate.
