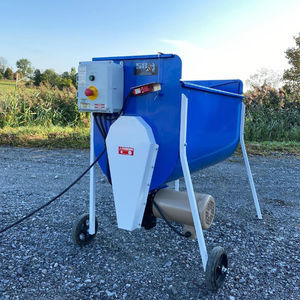

Stationary substrate mixer SB 17

processing

Product overview
The SB 17 soil mixer processes 2.75 cubic yards (2.10 m³) of growing media in 5–10 minutes and unloads in under 5 minutes. The hopper is sized for loader loading and can be loaded with a bale breaker. The SB 17 can be paired with a soil filler or used to fill large containers at the discharge when fitted with the optional foot pedal. A loading door allows easy addition of additives. Unit includes a humidification system.

Production

• Capacity: 2.75 cubic yards (2.10 m³)
• Mixing time: 5–10 minutes
• Unloading time: < 5 minutes

Power and motors

• Power supply: 240 V, single-phase
• Motors: 5 HP main motor; 1.5 HP conveyor motor
• Other power options available

Dimensions

• Length: 145" (3.68 m)
• Width: 94" (2.39 m)
• Height: 95" (2.41 m)
• Soil loading level: 78" (1.98 m)
• Additives loading door height: 36" (0.91 m)
• Unloading level: 71" (1.80 m)
• Weight: 3000 lb (1360 kg)

Options

• Foot pedal
• Water meter

Technical specifications

• Model: SB 17
• Capacity: 2.75 cu yd (2.10 m³)
• Mixing time: 5–10 minutes
• Unloading time: < 5 minutes
• Power supply: 240 V, single-phase (other options available)
• Motors: 5 HP (main), 1.5 HP (conveyor)
• Dimensions (L x W x H): 145" x 94" x 95" (3.68 m x 2.39 m x 2.41 m)
• Soil loading level: 78" (1.98 m)
• Additives loading door height: 36" (0.91 m)
• Unloading level: 71" (1.80 m)
• Weight: 3000 lb (1360 kg)
• Includes humidification system
• Optional: foot pedal, water meter
