Mobile substrate mixer SB 02

automaticprocessingfor wood bark

Overview

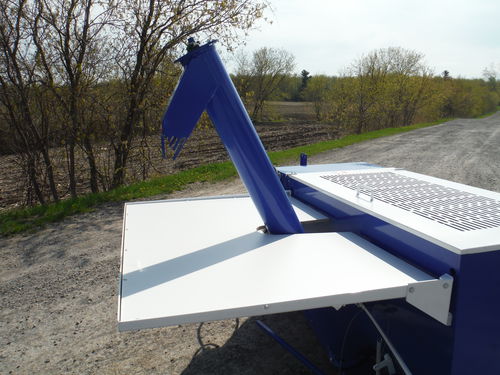

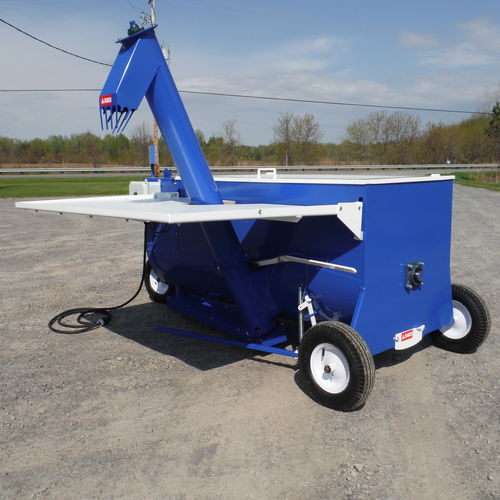

The SB02 is a mixer and bale breaker designed for nursery production. Its semi-automatic filling system enables the incorporation of bulbs, trees or roots during the filling process. Equipped with an auger and a foot pedal, it can operate as a standalone filling system or feed another flat filler. The machine is mounted on 16" pneumatic wheels and includes a tow bar for mobility. Bag filling is possible with a simple add-on.

Production

• Capacity: 1 cubic yard (equivalent to 3 compressed bales of 3.8 cu ft)
• Mixes soil and/or breaks bales in less than 1 minute per batch
• Compatible media: peat moss and light soil; accepts additions such as water, fertilizer, small bark

Power

• Power supply: 220 V, single phase, 60 Hz
• Motor: 1 x 5 HP (23.0 A) for mixer and auger

Dimensions

• Working position: 86" (2.18 m) L x 98" (2.5 m) W x 72" (1.8 m) H
• Storage/transport position: 86" (2.18 m) L x 56" (1.42 m) W x 72" (1.8 m) H
• Loading height: 43" (1.1 m)

Weight

• Net weight: 700 lb (317 kg)

Options

• SB 20 bale hoist
• Alternative power configurations available
• Bag holding rods

Technical specifications

• Model: SB02
• Function: Mixer, bale breaker, semi-automatic filling system for nursery production
• Capacity: 1 cubic yard (3 compressed bales of 3.8 cu ft)
• Cycle time: Mix/break bale in < 1 minute per batch
• Compatible media: peat moss, light soil; accepts additions (water, fertilizer, small bark)
• Power supply: 220 V, single phase, 60 Hz
• Motor: 1 x 5 HP (23.0 A) for mixer and auger
• Working dimensions: 86" (2.18 m) L x 98" (2.5 m) W x 72" (1.8 m) H
• Storage dimensions: 86" (2.18 m) L x 56" (1.42 m) W x 72" (1.8 m) H
• Loading height: 43" (1.1 m)
• Wheels: 16" pneumatic wheels
• Tow bar included
• Net weight: 700 lb (317 kg)
• Optional accessories: SB 20 bale hoist, bag holding rods, alternative power configurations
