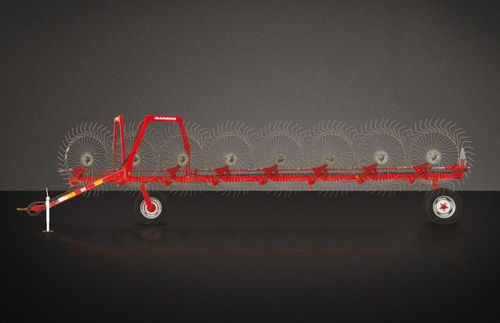

Rotary rake 5940

side delivery

Sweeping wheels (quantity): 8 mounted on bearings. Sweeping wheel diameter: 1520 mm Quantity / wire diameter: 40 / 8 mm Tractor requirement: Minimum power: 40 CV (DIN) Coupling system: Trailed Hydraulic group: Minimum pressure: 120 Kg/cm2 1 single effect output to raise collector wheels Working position of collector wheels: Independent floatation Working width register: Manual continuous regulation Draw bar position :Working - Adjustable in 2 positions. Transport Draw bar hitch: Adjustable in height Wheel 6.00 x 16 – 6 ply (quantity 3) – agricultural type - 3 guides Dimensions: Transport width: Min. 3.150 mm Total length: 8.600 mm Working width: Continuous regulation Max.: 4.800 mm Maximum clearance collectors wheel: 600 mm Total weight: 860 Kg. Working speed: Maximum 15 km/hour
