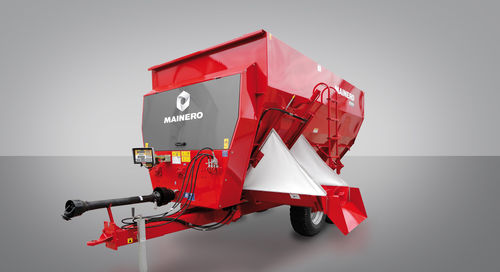

Horizontal mixing wagon 2932

towedside discharge3-auger

Mixing capacity: (12 m3) 425 cu ft Maximum loading capacity: (5,000 Kg) 11,023 lb. Variable according to materials included. Required tractor: Minimum power: 130 HP. PTO: 540 rpm – 6 splines. Hydraulics: Minimum pressure: 120 bar 2 double acting cylinders outlets to: - Power discharge heigth. - Dicscharge door opening/closing. Main drive: CV PTO shaft. Heavy duty roller chain drive. Safety system: Shear pin on the PTO shaft. Mixing system: 3 horizontal augers. Lower auger type: 3/8” flighting, “T” shape reinforcements on its back and replaceable knives. Lower auger knives: Self-sharpening progressive-cut hardened knives. Lower auger bottom: Wear plate floor on the whole mixing chamber length. Upper augers: Auger flighting on the front-end and crumbling paddle-knives on the rear-end. Shear pins on both augers. Admitted materials: High moisture or dry concentrates, grains and byproducts; water; molasses, syrup, precision-chopped or flail-chopped silages or fresh forages; hay in all forms of conservation: small square bales, big square bales, round bales, etc.* Hay processing time: 5 to 20 minutes average. Variable according to the bale type -small or big square or round bale-, to the forage type and stem length, desired particle size, etc. Mixing time: 4 to 6 minutes. Power discharge: Type: Double auger. Drive: Mechanically driven. Engaged with the door opening. Door opening: Hydraulic cylinder. Discharge heigth: Hydraulic cylinder. Magnets: Optional equipment. Discharge time: Adjustable. Mínimum: 2 minutes. Scale: Optional equipment.
