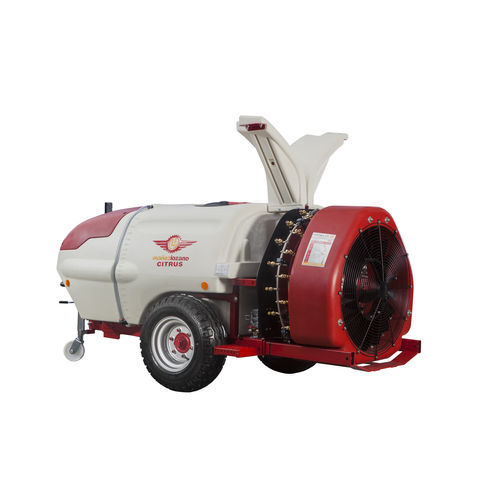

Towed sprayer Citrus FR

hydraulicwith piston pumpelectric

Trailed sprayer with double row of nozzles and triple air channel, for crops with important cup density, such as citrus. GENERAL FEATURES -Cold rerolled structural tube frame -Telescopic steering rod -Stirrup for easy access to the tank fi ller neck -Jockey wheel support -High quality polyethylene main tank with uniform thickness and front and side level indicator -Hand-washing and circuit-washing tank -Multiple fi ltering system -Product Mixer -Robot cleaning inside the main tank -Hydraulic Agitator -High pressure piston pump with reducer shaft -Electric ON/OFF controls Internal transmission category 4 SAE G7 External transmission and connection to CV tractor category 4 SAE G7 CITRUS AIR SYSTEM -Polyethylene fan housing -Stainless Steel defl ector with 18 blades to ensure even distribution to both sides of the air volume -Three-channel air duct system which increases production, preventing rapid air produced at the top of the rotor from colliding with the slow air generated in the central part. -Gearbox with two speeds and neutral -Propeller with hard aluminium core and steel jacket to prevent wear due to friction with the clutch -Eight adjustable blades with curved design that reduce power absorption and lowers the noise level and fuel consumption -Aluminium clutch linings that enable smooth and progressive start up
