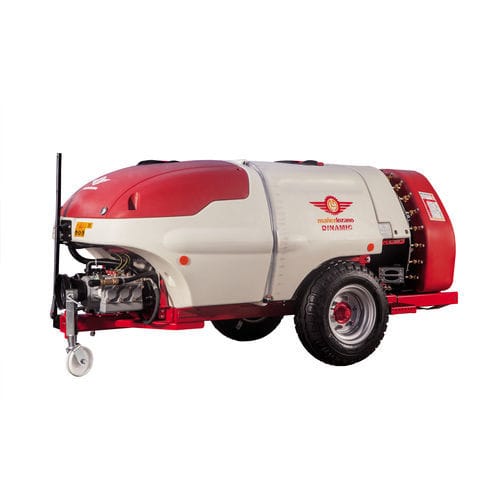

Towed sprayer Dinamic FR

for viticulturefor arboriculturehydraulic

It is the traditional trailed sprayer, with a great flexibility of use. GENERAL FEATURES -Cold rerolled structural tube frame -Telescopic steering rod -Stirrup for easy access to the tank fi ller neck -Jockey wheel support -High quality polyethylene main tank with uniform thickness and front and side level indicator -Hand-washing and circuit-washing tank -Multiple fi ltering system -Product Mixer -Cleaning robot inside the main tank -Hydraulic Agitator -High pressure piston pump -M-170 manual control with pressure regulator and pressure gauge -Internal and exterior transmission category 4 SAE G7 AIR SYSTEM DINAMIC -Polyethylene fan housing -Stainless Steel defl ector with 18 blades to ensure even distribution to both sides of the air volume -Two-channel air duct system which increases production, preventing rapid air produced at the top of the rotor from colliding with the slow air generated in the central part. -Propeller with hard aluminium core and steel jacket to prevent wear due to friction with the clutch -Eight adjustable blades with curved design that reduce power absorption, noise and fuel consumption -Aluminium clutch linings that enable smooth and progressive start up
