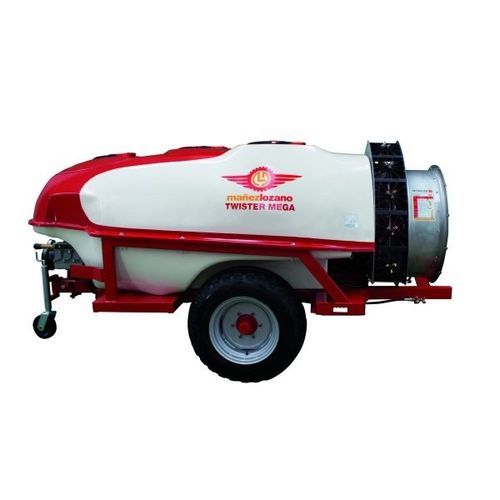

Towed agricultural atomizer MEGA S5

for arboriculturehydraulicwith piston pump

-Designed for large farms and difficult terrain -Double structural tube frame -Better stability on sloping or uneven terrain -Additional lateral tank attachments -Ultrasound system protector wings -Recommended use on semi-standard tractors (wheel arch following the tractor) GENERAL FEATURES -Double structural tube frame -Telescopic drawbar -Side step for reaching tank filler lid -Jockey wheel for parking sprayer -Fiberglass tank with level indicator and internal baffles tank -Hand wash and sistem rinse tank -Multiple filtering system -Product mixer -Cleaning robot inside the main tank -Hydraulic stirrer -Mañez Lozano high pressure piston pump with reduction shaft -ON/OFF electric control unit -Through tank pto class 4 SAE G7 -Tractor PTO category 4 SAE G7 AIR SYSTEM -Equipped with diff users that produce a spiral-shaped turbulent airflow that gives movement to the leaf mass. This system avoids the formation of leaf screens, and optimizes the penetration inside the tree. -Stainless steel air coming with 18 blades to ensure homogeneous air volume distribution on both fan sides -Triple air ducting system, which prevents the collision between fastest air produced in the upper part of propeller and slower generated in the central part. This system increases the efficiency -Duraluminium propeller hub with steel sleeve to prevent wear due to friction with the clutch -8 adjustable helical pitch blades that regulate energy / power absorption, reducing noise level and fuel consumption. -Pale made of nylon and fi berglass. Lightweight, resistant, rigid and unalterable to corrosion
