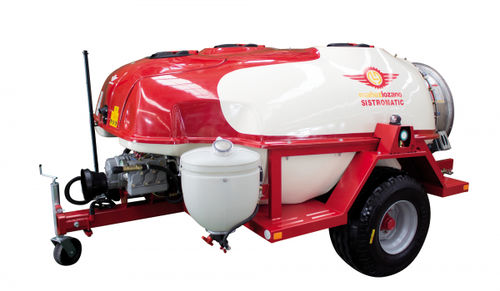

Towed sprayer Súper Olivar
for arboriculturehydraulicelectric

Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric
Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric
Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric - image - 2
Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric - image - 3
Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric - image - 4
Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric - image - 5
Towed sprayer - Súper Olivar - MANEZ Y LOZANO S.L. - for arboriculture / hydraulic / electric - image - 6
Add to favorites
Compare this product


Characteristics

Mobility
towed
Application
for arboriculture
Technology
hydraulic
Control regulator
electric
Other characteristics
with diaphragm pump, electric
Capacity

1,500 l, 2,000 l, 2,500 l, 3,000 l, 4,000 l
(396.3 gal, 528.3 gal, 660.4 gal, 792.5 gal, 1,056.7 gal)

Working width

Max.: 240 cm
(94.49 in)

Min.: 197 cm
(77.56 in)

Description

-Designed for large farms and diff icult terrain -Double structural tube frame -Better stability on sloping or uneven terrain -Additional lateral tank attachments -Ultrasound system protector wings -Recommended use on semi-standard tractors (wheel arch following the tractor) GENERAL FEATURES -Double structural tube frame -Telescopic drawbar -Side step for reaching tank filler lid -Jockey wheel for parking sprayer -Fiberglass tank with level indicator and internal baffles tank -Hand wash and sistem rinse tank -Multiple filtering system -Product mixer -Cleaning robot inside the main tank -Hydraulic stirrer -Mañez Lozano high pressure piston pump with reducer shaft -Electric ON/OFF control command -Through tank PTO class 4 SAE G7 -Tractor PTO class 4 SAE G7 AIR SYSTEM -Stainless steel air coming with 18 blades to ensure homogeneous air volume distribution of air on both sides. -Triple air ducting system, which prevents the collision between fastest air produced in the upper part of propeller and slower, generated in the central part. This system increases the efficiency. -Propeller with duraluminium hub with steel sleeve to prevent wear due to friction with the clutch. -8 adjustable helical pitch blades that regulate energy/power absorption, reducing noise level and fuel consumption. -Pale made of nylon and fi berglass. Lightweight, resistant, rigid and unalterable to corrosion.
