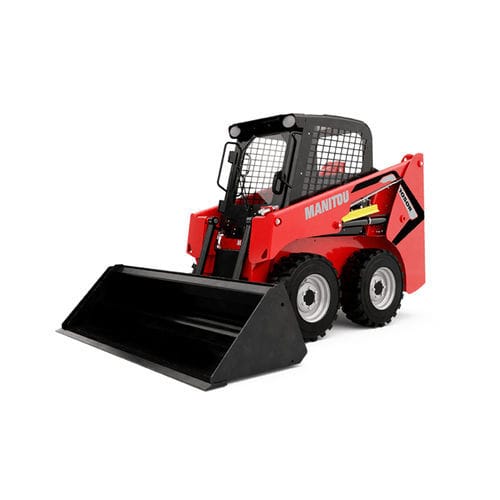

Compact loader 1350 R NXT2
rubber-tiredminiwith cab

Compact loader - 1350 R NXT2 - MANITOU BF S.A. - rubber-tired / mini / with cab
Compact loader - 1350 R NXT2 - MANITOU BF S.A. - rubber-tired / mini / with cab
Add to favorites
Compare this product


Characteristics

Type
rubber-tired
Other characteristic
with cab, mini, compact
Lifting capacity

612 kg
(1,349.2 lb)

Engine power

34 kW
(46 hp)

Description

Rated Operating Capacity with Optional Counterweight 680 kg Unladen weight 2384 kg Weight and dimensions Wheelbase 950 mm Overall Operating Height - Fully Raised 3670 mm Height to Hinge Pin - Fully Raised 2794 mm Overall Height to top of ROPS 1930 mm Dump angle at full height 40 ° Dump height 2123 mm Overall length with bucket 3076 mm Dump reach - Full height 584 mm Rollback at ground 28 ° Seat to ground height 871 mm Overall width less bucket 1364 mm Bucket Width 1372 mm Ground clearance 203 mm Overall length - Less Bucket 2360 mm Departure angle 25 ° Clearance Radius - Front with Bucket 1842 mm Rear departure angle 25 ° Performances Travel speed (unladen) 12.90 km/h Wheels Standard tires 10 x 16.5 - 10 PR HD Engine Engine brand Yanmar Engine model 4TNV88C-KMS Engine norm Stage V, Tier 4 Max. torque / Engine rotation 146.20 Nm / 2800 rpm Power source Diesel I.C. Engine power rating 46 Hp Battery voltage 12 V Alternator 100 kW Starter 2.30 kW
