Towed fertilizer applicator RA series

solidcentrifugaldouble-disc

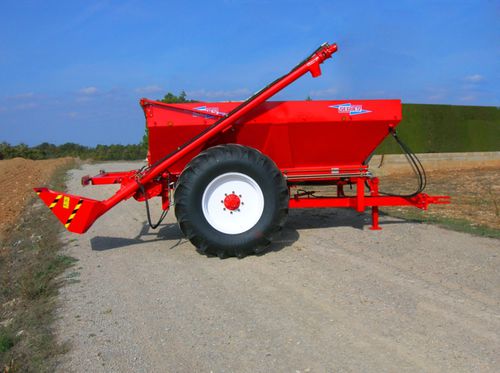

The SEGUES RA are 6.000, 8.000 and 10.000 kg trailed fertilizer spreaders fitted with conveyor belt and double spinner. They always perform a High accuracy VRA (variable rate application) and the spinners are hydraulically driven by two hydraulic motors ensuring this way a stable working width and a distribution precision unbeatable. They are suitable for spreading any low dampness fertilizer and even for seeding. STANDARD EQUIPMENT • Variable rate application system (VRA) • 18.4-30 or 34 traction tyres for a lower trailing resistance and lower soil compaction. • Spinners driven by both hydraulic motors • Hydraulic brake • Mechanical parking brake • Combined mechanical/hydraulic VRA distribution • Rust-Proof primer and coating • Parking jack • Stainless steel and great diameter spinners (800 mm) • 800 mm width conveyor belt to avoid the “vault” effect OPTIONAL EXTRAS • Cover tarpaulin • GPS driven electronic “variable rate application” system (VRA) • “Intelligent” distribution System • GPS guidance system • Working width regulator • Independent oil system driven by the PTO • In hopper auger for high dampness fertilizers • Hydraulic storing Jack • Top Galvanized mesh TECHNICAL FEATURES • Upload:6.000, 8.000, 10.000 l • Running gear:1 axle • Tyre:18.4/15-30 or 18.4/15-34 • Length:5.780, 5.780, 6.320 mm • Width:2.450 mm
