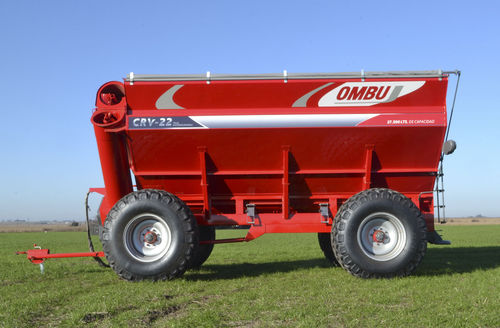

Chaser bin CRV 22

2-axleagriculturalgrain

Load volumen: 27.500 litres Capacity of load (wheat): 22T Unloading speed (Litres): 9,166 litres per minute Unloading speed (wheat): 7,33T/min Total Unloading speed: 3 minutes Minimum potency required: 118HP / 120 CV Unloading tube composed in two pieces (480mm diameter inner interchangeable tube – outer tube) Folding bottom plates opening system 100% retractable at 90° with an external handle to open/close and automatic lock when close. Chassis: tubular structure of micro-alloyed steel. Bodywork with low profile to the side of the unloading tube of the combine. Open/Close Unloading valve marker. Unloading tube vertical augers: directly driven by the gearbox. Horizontal augers: driven by a 1” transmission chain ASA 80-2H. Transport axles with changeable spindles. Tires: standard – 4 units of 23.1 x 30” tires – Optional: 4 units of 24.5 x 32” tires. Lower gate for fast unload. Front fast-unload gate with a spout for bagging. Tool box. Water tank with soup dispenser. LED rear lights. Roll-over tarp system. Optional: scale system.
