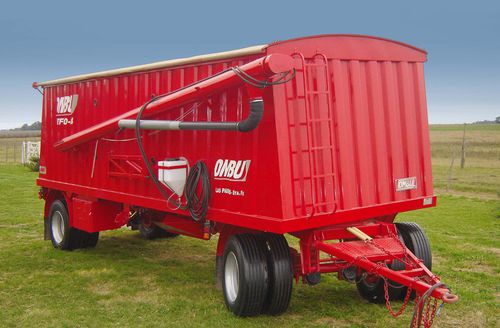

Towed fertilizer applicator

solid

Capacity: 24m3 Chassis: compact and directly assembled with the bodywork. Axles: 4” tubular type with conical bearings and reinforced leaf suspension. Front axle: has a cast steel turntable ball bearing for the steering and leaf suspension (12 leafs – 3” width – leaf thickness ½”). Unloading system: by the unloading tube diameter 200mm using a hydraulic motor with speed multiplier or using gravity unloading by the lower spouts. Parallelogram system: has adjustable height in two positions and compensator spring. It is bolted to the lower side of the unloading tube to bring greater ease in movements. Loading: the unit can be bulk loaded or using its tube in the load position. One operator can perform it. Tires size: dual tires 9.00 x 20” or dual 10.0 x 20”. Other features: Roll over tarp. Rear trunk. Inner epoxy paint applied. Central divider to separate seeds and fertilizer. Chemical deposit. Viewer. Optional: axles with 8” air drum brakes.
