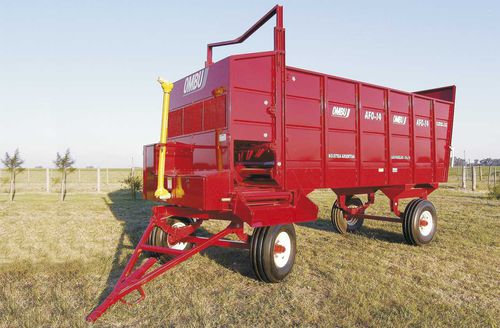

Loader wagon

2-axleagriculturalforage

Chassis: solid type with reinforced structure Load capacity: 14m3 Length: 5.580mm Gauge: 1.470mm Width transport: 2.350mm Lateral height: 2.750mm Tare: 2.760Kg Tires size: 10.00 x 16” Transmission: from 540RPM tractor’s PTO connected with the wagon by means of a PTO shaft. That shaft is directly connected to a gearbox which drives all inner chain transmissions. Mills system: it has independent driving enabling to unload the compacted forage and eventually mixing it with other components. Unload: it has the possibility to unload at side through a mechanical conveyor working underneath the mills or it can unload at the back inverting the sense of the moving floor and opening the rear gate. Optional: upper extension.
