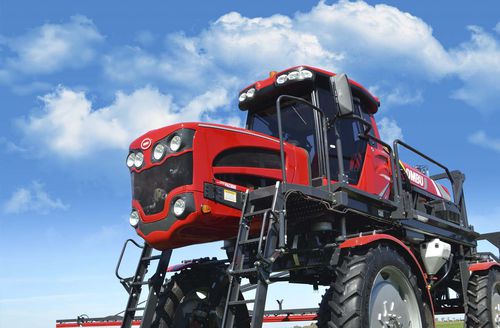

Self-propelled sprayer

hydraulicfolding arms

Height: 4,10m Length: 6,95m Width: 2,93m Gauge: fixed at 2,10m or 2,62m Capacity: 3000Lts plus additional clean water tank of 200Lts. Fuel tank: 210Lts Tire size: for models with gauge 2,10m the tire size is 12.4 x 36” and for models with gauge 2,62m the tire size could be 12.4 x 36” or 12.4 x 46” Clearance: with wheels 12.4 x 36” the clearance is 1,40m and with 12.4 46” tires the clearance is 1,55m Work width: available in two versions of 25m or 28,30m with metallic wings. Optional all models can be provided with carbon fiber wings with a length of 36m. Maximum / minimum boom height: 2,10m – 0,65m Nozzles: brand ARAG type fivefold. Spraying line: on 25m work width wing the configuration is 71 nozzles at 35cm between them or 49 nozzles at 52cm. Regarding the other model of work width 28m the configuration is 81 nozzles at 35cm or 55 nozzles at 52cm. Engine: DEUTZ BF6L 913 – 6 cylinders turbo super charged. Brakes: pneumatic drum brakes or discs brakes on 4 wheels. Spraying pump: brand HYPRO – model 9303C HM5C driven by a hydraulic motor of 431liters per minute. Loading pump: brand HYPRO – model 9342P HM5C 5SPR commanded by a hydraulic motor of 757liters per minute. Hydraulic pumps: one 52liters per minute hydraulic pump to operate the spraying pump and the loading pump. Other hydraulic pump of 38liters per minute to command the steering, movement of the stairs, boom height, fold/unfold wings, 45° wings folding, height and lateral locks, rear hitch. Optional equipment: Carbon fiber wings, ALLISON automatic gearbox, Computer BRAVO 400 and BRAVO 400S, Satellite spraying navigator SKYPPER, automatic pilot, 12V fridge, etc.
