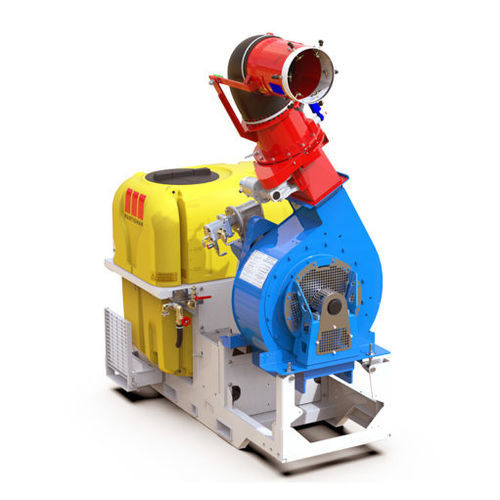

Mounted sprayer Phantom M612
for viticulturehorticulturefor arboriculture

Mounted sprayer - Phantom M612  - MARTIGNANI Srl - for viticulture / horticulture / for arboriculture
Mounted sprayer - Phantom M612  - MARTIGNANI Srl - for viticulture / horticulture / for arboriculture
Mounted sprayer - Phantom M612  - MARTIGNANI Srl - for viticulture / horticulture / for arboriculture - image - 2
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Application
for viticulture, for arboriculture, horticulture
Type
cannon
Technology
hydraulic, low volume
Other characteristics
pneumatic, centrifugal, for greenhouse, cannon, disinfection
Capacity

400 l, 500 l, 600 l
(105.7 gal, 132.1 gal, 158.5 gal)

Pump capacity

Min.: 180 l/min
(47.6 us gal/min)

Max.: 300 l/min
(79.3 us gal/min)

Pump pressure

1.5 bar
(21.8 psi)

Air flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 20,000 m³/h
(706,293.3 ft³/h)

Description

It is available exclusively with cannon heads Ideal for medium to large areas and for treating horticultural crops in open field, greenhouse or tunnel, nurseries, large ornamental or forestry trees. CROPS horticultural crops greenhouse and open field crops nurseries flowers large ornamental or forestry trees TECHNICAL FEATURES Metering valves flow rate - 0 to 550/1300 l/h Pneumatic nozzle - D.4MM. Agitation - Hydraulic AVAILABLE CONFIGURATIONS Cannons Cannon outlets are ideal for treating all protected (greenhouses, tunnels) or open-field crops, horticultural crops, strawberries, tree nurseries, tall trees, coconut palm, date palm, oil palm, hilly vineyards, pest control operations (mosquitoes, locusts, etc.), green care, etc. Spray ranges can reach 35 m horizontal and 25 m vertical.
