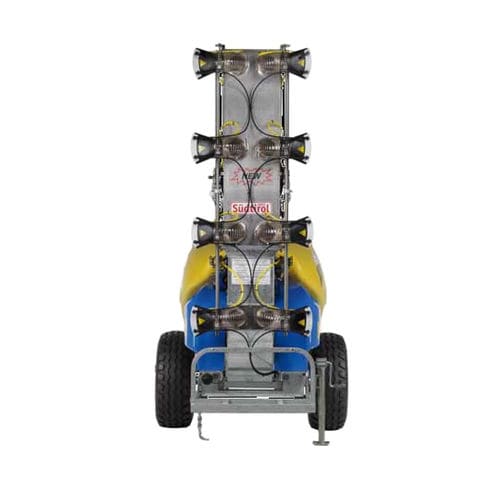

Electrostatic sprayer M612 MULTI-FLOW
towedfor viticulturewith diaphragm pump

Electrostatic sprayer - M612 MULTI-FLOW - MARTIGNANI Srl - towed / for viticulture / with diaphragm pump
Electrostatic sprayer - M612 MULTI-FLOW - MARTIGNANI Srl - towed / for viticulture / with diaphragm pump
Electrostatic sprayer - M612 MULTI-FLOW - MARTIGNANI Srl - towed / for viticulture / with diaphragm pump - image - 2
Add to favorites
Compare this product


Characteristics

Mobility
towed
Application
for viticulture
Other characteristics
with diaphragm pump, pneumatic, electrostatic
Capacity

600 l, 1,000 l, 1,500 l, 2,000 l, 3,000 l
(158.5 gal, 264.2 gal, 396.3 gal, 528.3 gal, 792.5 gal)

Rinse tank capacity

32 l, 120 l, 220 l
(8.5 gal, 31.7 gal, 58.1 gal)

Pump capacity

Min.: 160 l/min
(42.3 us gal/min)

Max.: 500 l/min
(132.1 us gal/min)

Pump pressure

1.5 bar
(21.8 psi)

Description

The Pneumatic Electrostatic Mist Blower M612 Multi-Flow "Südtirol" has been designed and realized to increase to the maximum the drift control in the treatment of Vineyards and Orchards deep in rural/residential areas or near sensitive areas to protect, respecting the so-called "BUFFER ZONES" Infact, while the various regional regulations (for example those regarding the Italian region of Trentino Alto-Adige) dictate that all sprayers equipped with fans must stop the air, or the air and liquid emission in critical conditions, with the Pneumatic Electrostatic Mist Blower M612 Multi-Flow "Südtirol 2015", equipped with the cutting-edge Integrated Absolute Antidrip System, you don't have to stop the emission of air, as it uses this element in an original and intelligent way to create an effective protective barrier to protect BUFFER ZONES. 5 New Advantages in only one machine: 1.Selection of different airflow speeds and angle of incidence -Tractor absorbed power reduced by 25-40% 2.Selection of different droplets diameters as needed 3.New high precision fluid metering valve 4.New integrated anti-drip system 5.New multi-flow nozzles with reinforced Electrostatic charge
