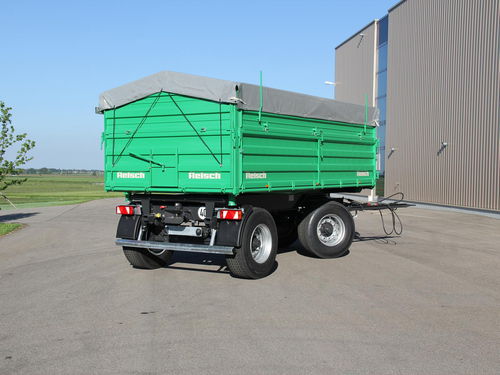

Dump trailer RD-180.520

tipping2-axleagricultural

Bolt underride protection, galvanized, with separate lighting sources in a protected position on the vehicle frame. Fender bracket and luminaire support in galvanized bolt Strurdy frame braces cranked in welded constructions Deflectable bogie with large ball joint Suspension VB-09/1065/325 with offroad axle regulation. Wheel 10.0/75-15,3 AW 10 PR Plastic half-shell fender Per axle, Standard at the rear axle Brake-connector for second trailer (2-conductor) Spring parking brake with double release and overload protection valve 4 Wheel compressed air-brake. Hydraulic connection for the second trailer Handle about a 3-way gate valve. Hard chrome- plated hydraulic cylinder with lift-valve and shut-off Hard chrome- plated hydraulic cylinder with lift-valve and shut-off Shovel with hand lever in the rear gate Ascending aid on the front gate profiled steel walls and tower,side with pressed on scrubbers and reinforced reinforcement profiles.Site gatesand rear gateswinning and foldingwith central locking system, front gate fixed.Cornering removable. board wall sealingwith circumferential,replaceable rubber seal, protecdetin the wall panel profile Chain of gate with continuous walls (swinging and folding, without loosening the chain) Chassis-special painting in RAL color specification (with the exception of RAL 9006, not available) Chassis-special painting in RAL color specification (with the exception of RAL 9006, not available) Chassis-special painting in RAL color specification (with the exception of RAL 9006, not available) Construction special-paint "Reisch green-old" Hestal closer 664 N instead serial closers.
