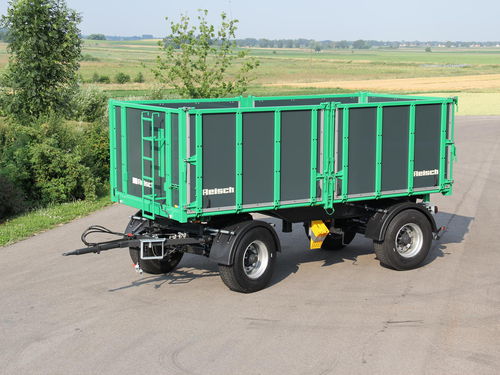

Dump trailer RD-180PT

tipping2-axleagricultural

Bolt underride protection, galvanized, with separate lighting sources in a protected position on the vehicle frame. Fender bracket and luminaire support in galvanized bolt Strurdy frame braces cranked in welded constructions Deflectable bogie with large ball joint Suspension VB-09/1065/325 with offroad axle regulation. Wheel 10.0/75-15,3 AW 10 PR Plastic half-shell fender Per axle, Standard at the rear axle Brake-connector for second trailer (2-conductor) Spring parking brake with double release and overload protection valve 4 Wheel compressed air-brake. Hydraulic connection for the second trailer Operation over 3 way stopcock Hard chrome- plated hydraulic cylinder with lift-valve and shut-off Hard chrome- plated hydraulic cylinder with lift-valve and shut-off Shovel with hand lever in the rear gate Ascending aid on the front gate Board gate with steel upper belt, Wood- Multiplex Panle with coating on both sides,One-piece zentral locking system, Back gate swingable and foldaple, Front gate fixed,Cornering removable. All-round profile with replaceable rubber seal. Sideboards in the right direction of travel with pivoting portal gates, removable corner posts and rod locks. Side panel hight 1.500 mm Chassis-special painting in RAL color specification (with the exception of RAL 9006, not available) Chassis-special painting in RAL color specification (with the exception of RAL 9006, not available) Construction spezial-paint RAL 9006 ALU-white Construction spezial-paint RAL 9006 ALU-white Construction special-paint "Reisch green-old"
