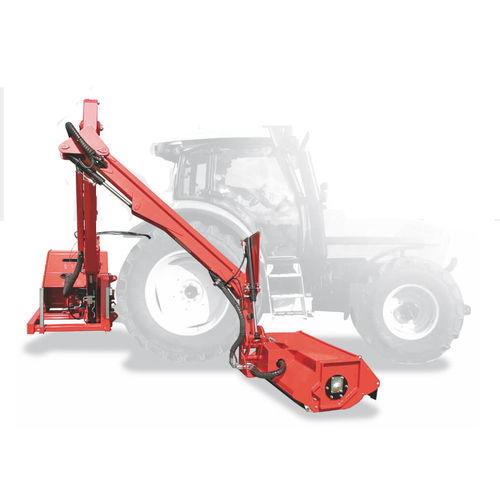

Hydraulic hedge cutter KATIA

mounted

KATIA is a forward reach professional hedge cutter with compass arm for grass, shrubs and bushes for road maintenance. It can be coupled with tractors with a power between 80 and 100 HP with minimum wheel track of 2,2 m and a weight of at least 3.500 kg, allowing an extension of up to 6,5 m. Safety and reliability The peculiarity of the model KATIA lies in the compass arm system which, allowing the hydraulic forward movement of the head, ensures the operator with greater control, as required for road maintenance. The safety systems include OVER CENTER on the first arm which prevents it from suddenly lowering to the hydraulic safety system with adjustable hydropneumatic shock-absorber, up to the mechanical shockproof safety system which discharges the hydraulic pressure of the rotor in case it blocks. Accuracy and safety The CFS (Contour Following System) is available on request, which allows the floating of the arm by means of a potentiometer that makes it possible to follow the profile of the ground without having to intervene on the controls, protecting the arm and the hydraulic motor from damage. High performing heads KATIA can be coupled with different types of 125 cm wide heads with belt or direct drive. KATIA offers different combinations for the cutting parts, blades and hammers. The spiral type rotor allows the double rotation direction and the floating function up to 246° of rotation, ensuring maximum performance.
