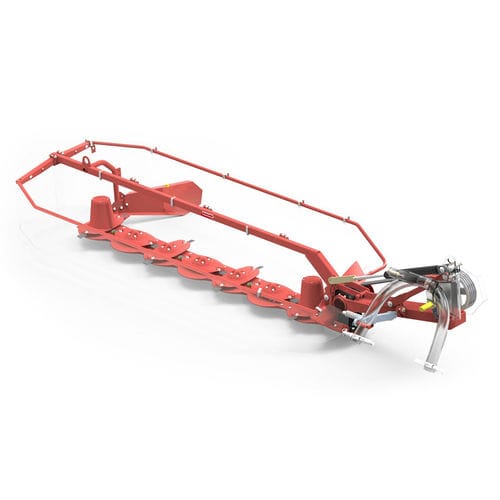

Disc mower DEBORA
mounted10 blades12 blades

disc mower
disc mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
disc
Number of blades
12 blades, 8 blades, 10 blades
Number of discs
6 discs, 5 discs, 4 discs
Other characteristic
PTO-driven, with conditioner
Working width

1.6 m, 2 m, 2.4 m
(5'02" , 6'06" , 7'10" )

Power required

20 ch, 30 ch, 45 ch
(20 hp, 30 hp, 45 hp)

Swath width

Max.: 1.7 m
(5'06" )

Min.: 1.1 m
(3'07" )

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

410 kg, 445 kg, 490 kg
(903.9 lb, 981.1 lb, 1,080.3 lb)

Description

MASCHIO GASPARDO disc mowers guarantee a high flow of forage with a low power requirement. Designed to meet the needs of smaller farms, DEBORA is reliable, durable and has a precise cut. Available with working widths of up to 2.4 m, it can be coupled to tractors of up to 45 HP. LITECUT cutterbar This particular bar consists of two knives per disc. The quick replacement of the knives is possible thanks to a convenient lever on the back of the bar. The high cutting surface is made possible by the combined action of the 105 mm long knives and the 360° rotating knife holders. The discs are protected by the SAFEGEAR system with cutting key protection. Safety both on and off the field The lateral belt drive and the slip clutch PTO shaft together with the obstacle safety device guarantee high safety during cutting operations. The hydraulic locking system and mechanical transport lock make road transport extremely safe. Swath accessories In order to obtain well-formed swaths, different types of raised skids and swath discs are available.
