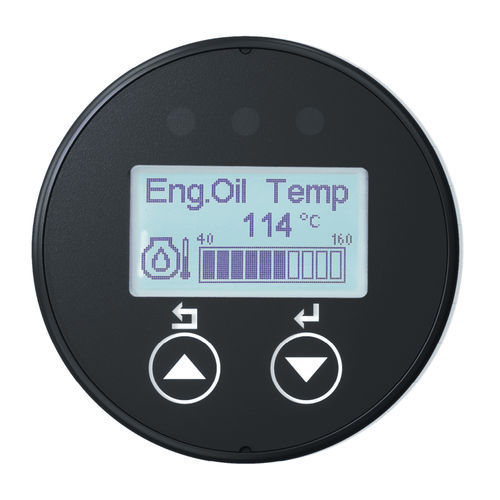

CANbus control panel maxAI™ 130

digitalfor off-highway vehicleswith keyboard

Our newest maxAI™ product is small but mighty! Housed in an attractive and compact 52mm casing, the maxAI™ 130 is equipped with an enhanced graphic display with an optional two-button keypad. From small construction equipment to large specialty vehicles, put this display to the test even for the most demanding applications. Specifications Below you find an overview specification of the maxAI™ 130. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals. PROCESSING - Main Processor - Micro-controller based on ARM® Cortex®-M0 32-bit Storage - Flash memory 200 KB, for OS and applications RAM - Micro-controller internal RAM 16 KB DISPLAY - Type - FSTN Size & Resolution - 1.36" diagonal, 106 x 56 pixels Color Depth - 1-bit monochrome SOFTWARE - Application Software - maxAI™ Configurator HMI - Keypad - maxAI 130b only: 2-button keypad, can be used to navigate up to 12 screens or select menu items INTERFACES - CAN - 1 CAN, J1939 or CAN open protocol, 250 or 500 kbps baud rate available Power Supply - 12 or 24 volt nominal systems Connectors - 8 pin TE Mini-Universal MATE-N-LOK Warning Lights - 3 dead-fronted LED status indicators Input - 4 configurable inputs for resistive or voltage output senders, or digital inputs
