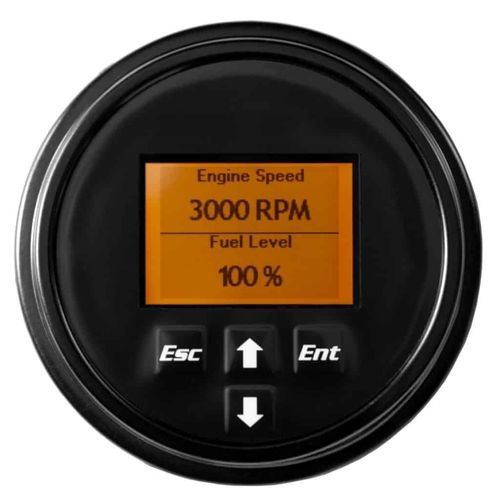

CANbus control panel maxAI™ 200

digitalwith keyboardwith display

The maxAI 200 is a simple but highly configurable display. Complimentary to our full CAN bus and DDBI portfolio, the maxAI 200 offers up to 50 different parameters for full customization and flexibility. Specifications Below you find an overview specification of the maxAI™ 200. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals. PROCESSING - Main Processor - Micro-controller based on ARM® Cortex®-M3 32-bit Internal Memory - 64KB RAM, 512KB Flash External Memory - 64KB EEPROM DISPLAY - Type - LCD (amber back light) Size & Resolution - 2.0" diagonal, 128 x 96 pixels Color Depth - 1-bit monochrome SOFTWARE - Application Software - maxAI™ Developed, Configurable on Device HMI - Keypad - 4-button keypad, can be used to navigate parameters or select menu items INTERFACES - CAN - One CAN, J1939, 250 or 500 kbps baud rate available Power Supply - 12 or 24 volt nominal systems, 9-32 VDC Connectors - 2 x 6-pin Deutsch DT Series Connectors Warning Lights - 2 dead-fronted LED status indicators (amber & red) Input - 4 configurable inputs for resistive or voltage output senders, or digital inputs Output - 2 Digital Outputs (low/high side drivers) ENVIRONMENT - IP Class - IP67 (front) EMS Conformity - ISO 13766 (emissions) SAE J1113-21 (immunity) SAE Standard - Vibration, UV, salt spray and chemical compatibility Temperature Range - -30 to 85°C (operational), -55 to 85°C (storage)
