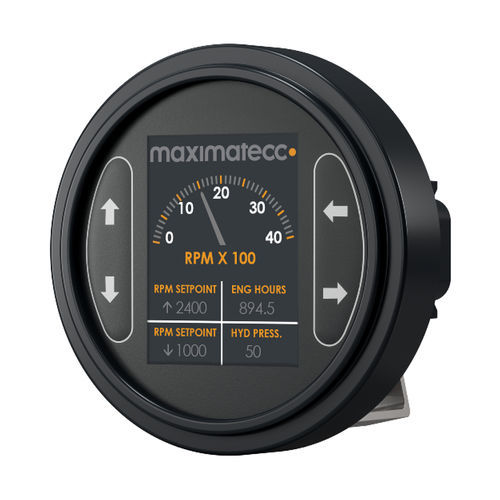

CANbus control panel maxAI™ 280

digitalfor off-highway vehicleswith keyboard

The maxAI™ 280 is your all-in-one instrumentation display that provides the brightest and clearest display to help you see critical data quickly and efficiently. The two model options provide solutions to your vehicle monitoring. maximatecc now offers Qt for MCU compatibility. Specifications Below you find an overview specification of the maxAI™ 280. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals. PROCESSING - Main Processor - Micro-controller based on ARM® Cortex®-M7 32-bit Internal Memory - 1MB RAM, 2MB Flash External Memory - 16MB Flash, 64KB EEPROM DISPLAY - Type - Premium TFT Size & Resolution - 2.8” diagonal, 240 x 320 pixels, IPS full view angle Color Depth - 18-bit RGB Contrast Ratio - 800:1 Brightness - 600 NITS SOFTWARE - Operating System - Optimized FreeRTOS based on MIT’s open source standard Application Software - Freely programmable toolchains, primarily programmed via GNU C/C++ and supports application modules and library additions, JTAG/serial wire debugging HMI - Keypad - 4 button keypad: navigate/select menu items INTERFACES - CAN - 1 CAN, J1939, bit rate config. 5Mbps Bluetooth - maxAI 280b: For wireless configuration Power Supply - 12 and 24 volt systems, 9-32 VDC Connectors - maxAI 280 & 280b: 1 Deutsch DT06-08SA connector maxAI 280b: Add'l 1 Deutsch DT06-6S connector Warning Lights - Amber/RED dead-fronted LED indicator Input - maxAI 280: 2 config. Inputs,
