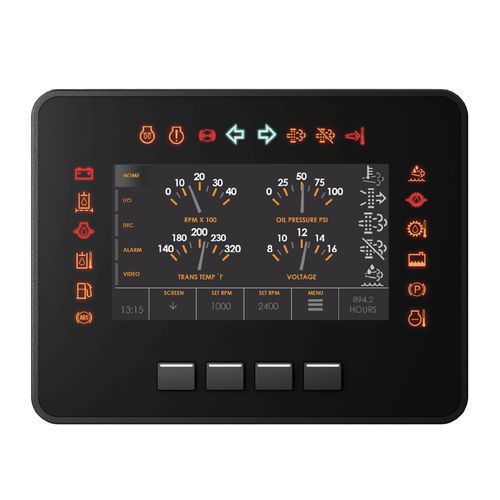

maximatecc's most advanced engine monitoring system allows you to fully customize your display to suit your application. The maxAI 430 is available in four models to fully integrate with your vehicle. The vibrant 4.30" TFT display provides the highest quality visuals to optimize performance and efficiency.
maximatecc now offers Qt for MCU compatibility.
Specifications
Below you find an overview specification of the maxAI™ 430 series. The same information is found in the product leaflet which is available for download and in printed form. Please note that product information may change over time and the latest and correct information is always found on this website. You find additional information in the technical manual and software manuals.
PROCESSING -
Main Processor - Micro-controller based on ARM® Cortex®-M7 32-bit
Internal Memory - 1MB RAM, 2MB Flash
External Memory - 2MB SDRAM, 16MB Flash, 64KB EEPROM
DISPLAY -
Type - Premium TFT
Size & Resolution - 4.3” diagonal, 480x272 px, 75x75x75 multi-viewing angle
Color Depth - 24-bit RGB
Contrast Ratio - 800:1
Brightness - 1000 NITS
Dimming - 10-100% manually controlled via keypad
SOFTWARE -
Operating System - Optimized FreeRTOS based on MIT’s open source standard
Application Software - Freely programmable toolchains, primarily programmed via GNU C/C++ and supports application modules and library additions, JTAG/serial wire debugging
HMI -
Keypad - 4 button keypad: navigate/select menu items
INTERFACES -
CAN - 2 CAN, J1939, standard 250 kbps or 500 kbps
USB - USB 2.0 slave (Boot loader and SW configuration support)
Bluetooth - 430v, 430iv only: Bluetooth 4.2 (SW configuration support)
