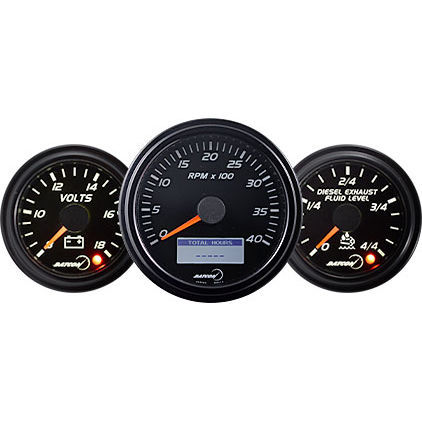

CANbus control panel DDBI 500

analogfor off-highway vehicleswith display

These J1939 gauges can be connected directly to the vehicles bus network - no instrument controller or gateway device required. DDBI’s electronics architecture enables a standalone solution. FEATURES: - 9-32V operating voltage - English or Metric units - White LED backlighting - Reliable and accurate stepper motors - Reinforced case w/ integral connector - Fully sealed for all-weather use - CE Certified - RoHS Compliant PERFORMANCE: Environmental: -40°C to 85°C -IP 67 Sealing -Exceeds SAE standards for vibration and salt spray ELECTRICAL: - 9-32V operating voltage - Reverse polarity and transien protection including load-dump, over-voltage, and ESD 2-1/16” SPECIFIC: - Dual Color Indicator for high/low warning or DM1 message - Matching analog gauges for non-J1939 signals 3-3/8” SPECIFIC: - 132 x 64 Dot Matrix LCD - J1939 Fault Code support - Analog inputs for Fuel Level and Brake Pressure - Integrated settable service meter - Optional through lens trip switch
