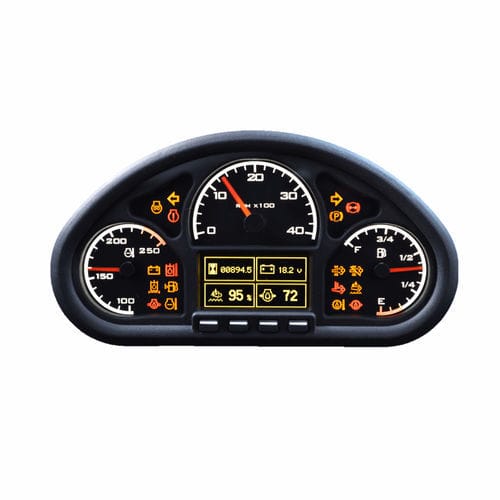

CANbus control panel Premium Compattino™ 2.0analogfor agricultural vehicleswith display
Add to favorites
Compare this product
Characteristics
- Type
- analog
- Applications
- for agricultural vehicles
- Configuration
- with display, with gauge, backlit
- Protection class
- IP67, IP65
- Other characteristics
- customizable, LED, CANbus
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
Premium Compattino™ 2.0, a fully customizable instrument cluster, works with J1939 and Analog inputs. Sunlight readable display shows additional parameters and system messages. 18 LED warning lights are triggered by either J1939 messages or analog/digital signals.
Features:
• Gauges: 3x stepper motor driven electronic gauges configurable to work with analog senders or J1939 input
• Deadfront, black customizable overlay
• Operating Temperature: -30°C to 85°C
• Display: 2.7”, 128 X 64 yellow PM-OLED display with negative image offers excellent sunlight readability
• 18x LED indicators work with analog/digital input or J1939/CAN data
• 4x backlit buttons for menu navigation
• Boot loader software for custom applications
• Sealing : IP67 (Front) / IP65 (Rear)
• CAN Protocol: SAE J1939, 250 kbps/500kbps (Auto)
• Tier 4 Final support
