Cable winch EME series

ropeliftingfor manure scrapers

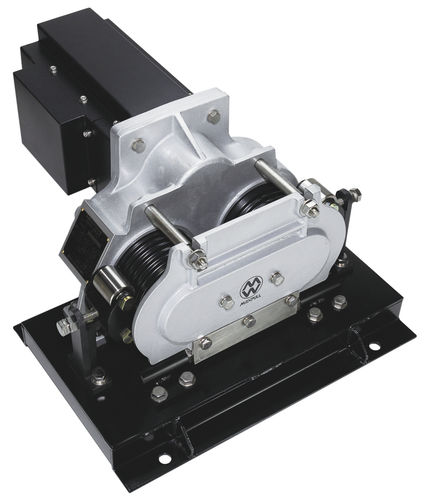

Endless winch for dual direction pulling This is an epochal endless winch for dual direction pulling equipped with unique functions. This winch have two drums that rotate the same direction at the same time with several special wire rope groove and two wire rope press rollers attached on the each drum. It provides a stable dual direction pulling power and prevention of wire rope loosing by itself. Users can easily wind a wire rope onto the drum from any portion of the endless wire rope. The winch provides a selection of dual direction pulling in not only one direction but also various directions depending on the purpose of use. In addition, it is also capable of one-way pulling. Thanks to its light weight and small size, users can use it in a wide range of locations. Examples of using EME winch. - Users can start winding a wire rope from any portion because a side frame is opening and closing type. Therefore, there is no need to process the end of the wire rope. - Several special wire rope grooves that are designed based on an optimum friction factor are inscribed on two drums. This prevents the uneven winding and fits appropriately to the tolerance of wire rope. - The wire rope press rollers in sets of two is installed on each drum, it prevents securely wire rope loosening. - This winch does not require a special wire rope. A commercially available steel core wire rope (Japanese Industrial Standards IWRC 6XFi (29)) can be used on it. - Users can select the control method either of current control or limit control. (Sold separately)
