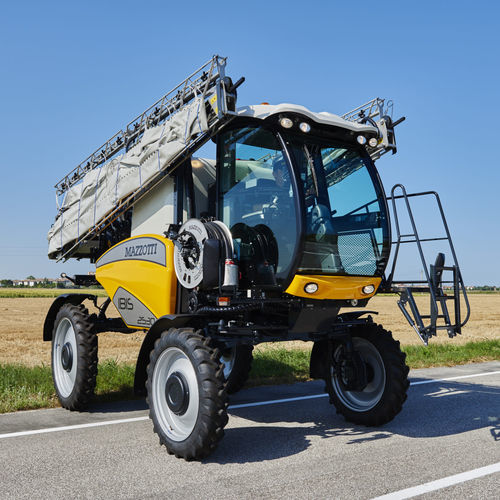

Self-propelled sprayer IBIS 2530

hydraulicfolding armsadjustable ground clearance

140-hp John Deere Power Tech engine combined with a 4-wheel-drive hydrostatic transmission. Two hydraulic pumps in tandem feed two independent hydraulic circuits, one for front axle and one for rear axle, ensuring traction even in the most difficult conditions. Two gears are available: from 0-20 km/h in work and from 0-40 km/h in road transfer. In the field, the maximum working speed can be set through the Slow Motion function. The IBIS is an extremely versatile self-propelled tractor because it is available with 3 different axle widths with either manual extension on rollers or automatic hydraulic extension from the cab. The standard ground clearance is 1 m or upon request up to 1.5 m. The left side compartment houses a 280 lt/m diaphragm water pump or 330 lt/m on request. Both a flow meter and a pressure switch work alternately to ensure the best distribution at different speeds. In the right compartment are located the multifunction valves for filling, product mixing and washing operations. A can washer is also included in the capacious 40-liter premixer. The front cab provides a pleasant driving experience both on the road and in the field. The view of the front wheels from inside the cab is useful in insertion maneuvers, while the positioning of the boom in transport does not hinder visibility on the road. This is a level 4 cab equipped with a pressurization system and includes activated carbon, dust and vapor protection filters for maximum operator safety.
