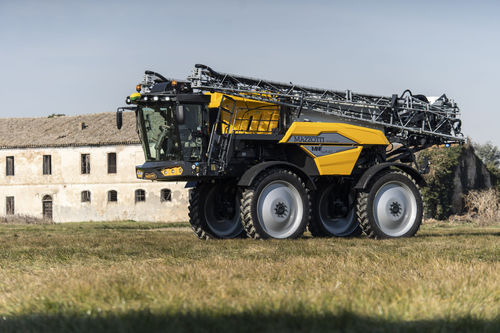

Self-propelled sprayer MAF 4240HP

hydraulicfolding armsadjustable ground clearance

MAF is offered in 3 main versions with different capacities: MAF 4240 (4460 lt), MAF 5240 (5440 lt) and MAF 6240 (6480 lt), and with alternative solutions in terms of clearance and tracking. MAF shows a large capacity, but extremely compact dimensions, total length just over 9 m and a wheelbase of 3800 mm, for excellent maneuverability. The transport width is 2800 mm with MZ boom, or reduced to 2550 mm with MK boom. The 4-wheel steering system is essential to reduce field access time and avoid damaging crops. The rear wheels always follow the front wheels, leaving two trajectories on the ground and allowing a tight turning radius of 5900 mm. The MAF allows 3 steering combinations: two front wheels, four-wheel steering and crab steering. Safe during fast road transfers with Mazzotti’s exclusive rear axle locking system. The MAF are equipped as standard with the John Deere PowerTech PVS 6-cylinder, 6.8L, 187 kW (250 HP) single turbo AdBlue Stage V or the 224 kW (300 HP) dual turbo AdBlue Stage V. The John Deere Stage II engine is available where required. Separate cooling circuits for engine, hydraulic oil and air conditioning for perfect efficiency. Engine is contained in fully openable boxes, accessible from the cab ladder. Ample space around the engine for easy maintenance. Axles are positioned on rollers to reduce friction and facilitate track changes. The MAF comes standard with hydraulic adjustment of each individual wheel, via a hydraulic lift. The track is adjusted one wheel at a time using a remote control. In less than half an hour the track is changed to the required position.
