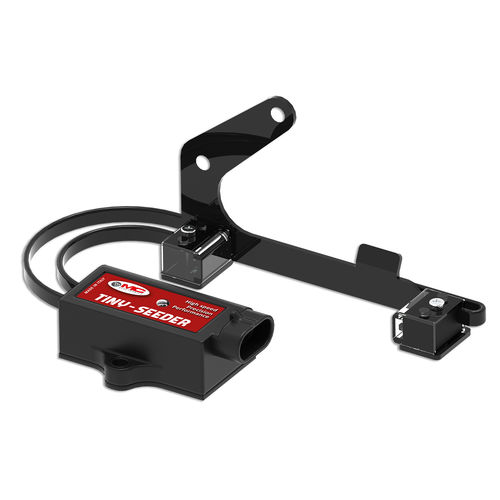

Seed sensor with counting function TINY-SEEDER

Tiny-Seeder is a counter photocell for vegetable planters. Unlike traditional models, this seed sensor self-configures to adapt its performance. FUNCTIONAL FEATURES AND ADVANTAGES Thanks to the integrated microprocessor, it acquires in real time the analogue signals of the IR receivers, and with its sophisticated digital analysis software detects both small seeds (rocket, valerian, onion, etc.) and very small and fast seeds (rapeseed, etc.) with a resolution that makes it possible to always tell them apart from dust and various residues for more precise sowing. Advantages •Dedicated: Counter photocell with performance designed to guarantee maximum detection precision with all types of small seeds (rocket, valerian, onion, etc.) •High resolution: the optimum optics combined with the advanced software make it possible to detect with precision even the smallest seeds, on a very wide detection area •Adaptability: it detects the type of seed in real time and automatically regulates the optimal work point, with self-compensation of dust and ambient light •Diagnostics: it performs periodical self-tests, showing the diagnostic status with multicoloured highly visible LEDs •Plug & play: it is 100% compatible with existing control systems and can directly replace traditional seed sensors on existing brackets or pipes
