Pruning harvest trolley 600

self-propelledadjustable-height

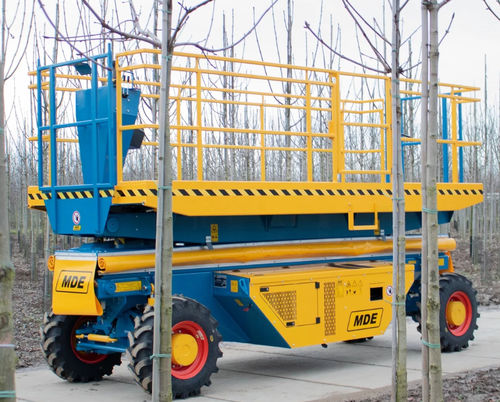

The MDE Quatro 600 is a pruning platform for the top segment. MDE has designed the Quatro 450 and Quatro 600 pruning platform, especially for the larger tree nurseries, with a strong 4-cylinder Kubota, water-cooled diesel engine of 35 hp. which is mounted in a quickly accessible insulated housing. The pruning platform has four wheels which are driven by its own hydraulic wheel motor. This construction gives you a very high pulling power and a very small turning circle. FEATURES Standard dimensions of the MDE pruning platform Q600: - The pruning platform has a working height of 8 meters; - The total length of the pruning platform is 425 cm; - Outside wheel width of the pruning platform is 148 cm; - The width of the pruning platform retracted: 100 cm; - The width of the pruning platform extended: 160 cm. The MDE pruning platform Q600 is equipped with: - Very slim scissor construction; - A working platform with a modern dashboard; - A lifting capacity of 500kg; - Four tires filled with elastic material that can never be punctured; - Of locking differential in both axles; - Heavy movable axles so the machine is always in balance; - Engine protection: low oil pressure, water temperature and dynamo; - Hydraulic adjustable work platform. This allows you to work in narrow and wide rows. The advantage of an adjustable work platform is that you go up in the narrow state between the crowns of two rows of trees; - A completely flat platform, regardless whether the platform is extended or retracted.
