Flatbed trailer BTW4x0M
mounted2-axleagricultural

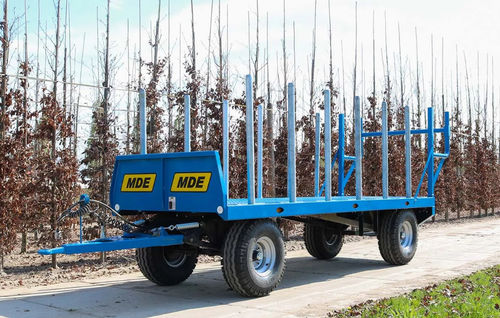

Flatbed trailer - BTW4x0M - MDE Machinebouw bv - mounted / 2-axle / agricultural

Flatbed trailer - BTW4x0M - MDE Machinebouw bv - mounted / 2-axle / agricultural - image - 2

Flatbed trailer - BTW4x0M - MDE Machinebouw bv - mounted / 2-axle / agricultural - image - 3

Flatbed trailer - BTW4x0M - MDE Machinebouw bv - mounted / 2-axle / agricultural - image - 4

Flatbed trailer - BTW4x0M - MDE Machinebouw bv - mounted / 2-axle / agricultural - image - 5

Flatbed trailer - BTW4x0M - MDE Machinebouw bv - mounted / 2-axle / agricultural - image - 6

Add to favorites

Compare this product

Characteristics

Construction: flatbed
Type: mounted
Number of axles: 2-axle
Application: agricultural
Payload: 0 t...10 t
Loading case lenght: 400 cm, 580 cm
(157.5 in, 228.3 in)
Loading case width: 140 cm
(55.1 in)
Loading case hight: 79 cm
(31.1 in)

Description

MDE transport trailer to transport trees. Because of it’s small construction, this trailer has the possibility to drive between the rows. Despite the small dimensions the transport trailer is made for heavy and long-lasting use. The trailer is equipped with: - Two heavy axles including grease nipples; - A steel headboard; - Four balloon wheels; - A tear plate floor; - Socket and brake connection for a additional trailer; - A tow bar at the rear; - Tow hooks; - Twelve removable stanchions; - A triangle / drawbar with a forged steel hitch; - Two backwards mounted stanchions with a cross stanchion; - Steps on both sides of the trailer. Coating: - The underside is treated with a body coating; - The topside is treated with a 2K lacquer coating.
