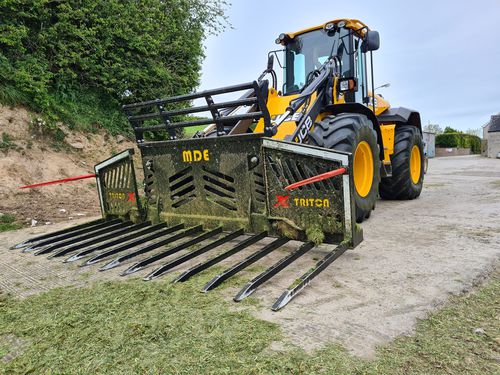

Silage fork Triton

for loaders

The MDE Triton was the first of the silage fork range that MDE launched back in 2013. The Triton range was designed with a hardox super lightweight chassis, thus making the Triton the most versatile silage fork on the market. Our Tritons super light weight design gives the fork the ability to work on various loaders ranging from 5,000kg right up to 19,000kg. Triton Range Working width 9ft/2.7m Weight 760kg Tine length 5ft/1.5m Working width10ft/3.0m Weight 810kg Tine length 5ft/1.5m Working width 12ft/3.6m Road transport width 8.4ft/2.5m Weight 1000kg Tine length 5ft/1.5m Working width 14ft/4.2m Road transport width 8.4ft/2.5m Weight 1300kg Tine length 5ft/1.5m Key Features • - 12”/300mm tine centres for easy flow of forage through the fork • - 5ft/1.5m 1.5”/40mm tines as standard to carry more forage up the clamp • - Removable kv side tine • - HD one piece chassis for extra strength and wear life • - Soft close hydraulic cylinders • - Wing lock in pins for road transport • - Counter balance load hold valve for locking of hydraulic cylinders • - Hinge point press in replaceable high tensile steel bushings • - Torque bolted hinge points • - Bottom rounded tine wear shoes Optional Extras Road transport guard Personalised fork wing guards Maze/corn blade Personalise your road transport guard Lighting kit Extra long 5.6”/1.7m tines Double side tines
