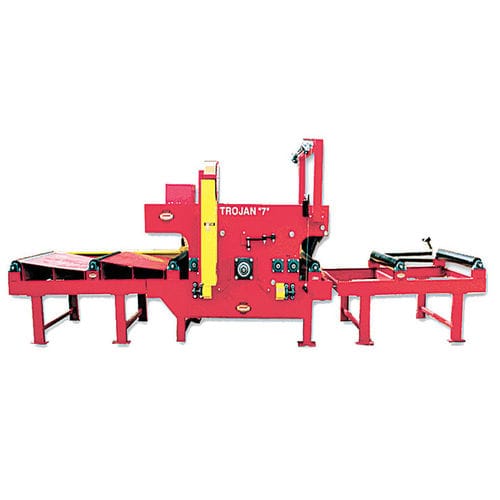

We have combined the expertise of Meadows Mills, Inc., with 101 years of experience, with the expertise of Miner Edger, with 79 years of experience, to build a line of revolutionary new combination edgers.
Specifications
•Frame constructed from stacked 8" x 18.75 lb./ft. channel.
•Standard frame length is 20' with infeed and outfeed table
•5 9/16" O.D. (Schedule 40 pipe with 1/4" wall) with 1 7/16" shaft with 1 7/16" pillow block bearings
•2 15/16" diameter high carbon turned, ground and polished steel with two 1/2" keys
•Two 4" diameter machine-cut infeed and two 4" diameter machine-cut outfeed bottom rolls connected by a roller chain drive
•Hydraulic feed with variable control
•Standard Hydraulic press roll lift with foot-pedal control or push button
•Press roll mounted with 1 7/16" bearing insert with locking collar
•22" inserted tooth F pattern saw, 8 gauge with 18 teeth, 9/32" kerf
•Stationary saw collars
