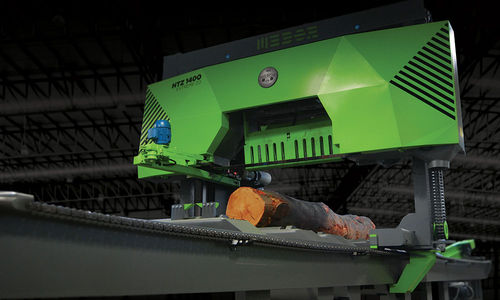

Band sawmill HTZ 1400 EXTREME 20

horizontalstationary

The EXTREME 20 is Mebor's ultimate, heavy duty band sawmill for sawing of the heaviest and hardest tropical logs. It is the resuit of Mebor’s rich worldwide expérience in sawing of tropical hardwoods. Key features: • designed for high production; with fast drives & powerful hydraulics, • suitable for ail sizes of hardwood logs, • very wide blade, powered by a 90/110 kW motor, • 28 tonnes of Steel, • optional upgrade to servo controlled blade positioning and faster return speed for more production. TECHNICAL DATA Productivity: up to 65/90 m3/8h* Max. log diameter: 2000 mm Max. cutting width: 1870 mm Max. log length: custom made Diameter of flywheels: 1420 mm Width of flywheels: 190 mm Blade length: 10500 mm Blade width: 206** mm Blade thickness: 1,47 mm Approximate weight: 25000 - 32000 kg*** Width: 4600 mm Total height (blade in highest position): 4300 mm Total length: log length + 6 m Main motor power: 90/110 kW
