Agricultural rotary cutter 120-200
rear-mountPTO-drivenchain

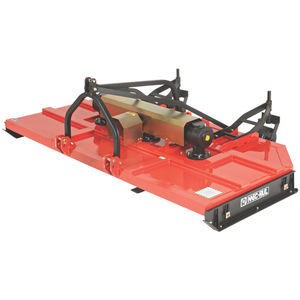

Agricultural rotary cutter - 120-200 - MEC-RUL - rear-mount / PTO-driven / chain

Agricultural rotary cutter - 120-200 - MEC-RUL - rear-mount / PTO-driven / chain - image - 2

Agricultural rotary cutter - 120-200 - MEC-RUL - rear-mount / PTO-driven / chain - image - 3

Agricultural rotary cutter - 120-200 - MEC-RUL - rear-mount / PTO-driven / chain - image - 4

Agricultural rotary cutter - 120-200 - MEC-RUL - rear-mount / PTO-driven / chain - image - 5

Add to favorites

Compare this product

Characteristics

Applications

agricultural

Mounting

rear-mount

Other characteristics

PTO-driven, chain

Working width

Min.: 1.2 m
(3'11" )

Max.: 2 m
(6'06" )

Tractor power

Min.: 15 ch
(15 hp)

Max.: 90 ch
(90 hp)

Description

The direct transmission of the Rotary Cutter MEC-RUL makes better use of the strength of the tractor eliminating stops for adjustment of belts and provides great speed and profitability at work. Allows central or decentralized work with a simple displacement of the three-point hitch and the gearbox position. Commercialized complete with internal free spin, gearbox with crown wheel and pinion set of helical conical teeth, clutch and driveshaft with protection. Optionals: Chain or oscillating system RDMR Version: 1 Height adjustment set 2 Top boost in the structure 3 Light gearbox with 35mm diameter entrance axle untill 1,60 mts. Bigger sizes with 45mm diameter on entrance axle.
