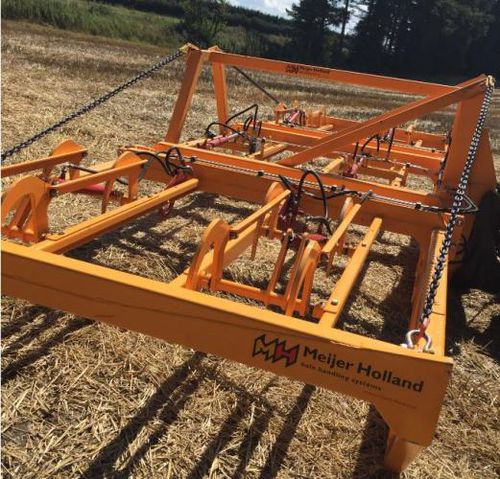

Rectangular bale loader Rambo 6KD

Category Big bales Subcategory Rambo bale grab Name Rambo 6KD, widthways Article number MHRAMBO6KD Length - 235 cm Width - 690 cm Height - 165 cm Weight - 1950 kg Max. weight per bale - 500 kg Max. baalafmeting (lxb) - 240 x 120 cm Max. pressure hydraulic circuit - 180 bar Description The Rambo 6KD grabs up to six large straw or hay bales transversely and has a folding main frame. The bales are clamped in 2 rows of 3 bales in the width direction of the machine. The bale clamp is very strong and is used only in combination with a heavy shovel from about 14 tons. The clamp is connected to the hydraulic system of the shovel. The clamp is less suitable for use on slopes. Suitable for - unloading bales - 6 bales of 120 cm wide Equipped with - 24 specially developed hooks of high quality steel - 5 hydraulic automates, making it possible to clamp the bales individually - 1 cylinder and 4 hooks per bale - A pressure relief valve - A 6/2 valve 24DC for switching between folding and gripping bales (excl. wiring and control). Advantages Rambo 6KD bale grab - The hooks turn deep into the bales, clamp them and pull the bales tight against the main frame. Options - Removable attachments - 2 hydraulic hoses and couplings
