Category Big bales
Subcategory Rambo bale grab
Name Rambo 7K
Article number MHRAMBO07K
Length - 200 cm
Width -
Weight - 2600 kg
Max. weight per bale - 500 kg
Max. baalafmeting (lxb) - 240 x 120 cm
Max. pressure hydraulic circuit - 180 bar
Description

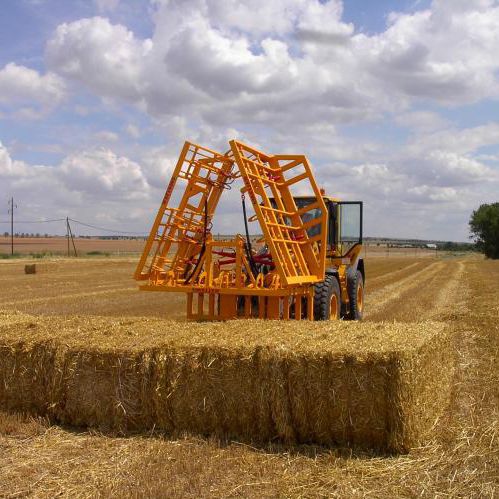

The Rambo 7K picks up a maximum of seven large straw or hay bales lengthwise and has a folding main frame. The bale clamp is very strong and is used only in combination with a heavy duty shovel from about 14 tons. The clamp is connected to the hydraulic system of the shovel.
The clamp is less suitable for use on slopes.
Suitable for
- unloading bales
- 7 bales of 120 cm wide
Equipped with
- 28 specially developed hooks of high quality steel
- 6 hydraulic automates, making it possible to clamp the bales individually
- 1 cylinder and 4 hooks per bale
- A pressure relief valve
- 6/2 valve 24DC for switching between folding and gripping bales (excl. wiring and control).
Advantages Rambo 7K bale grab
- The hooks turn deep into the bales, clamp them and pull the bales tight against the main frame.
Options
- Removable attachments
- 2 hydraulic hoses and couplings
