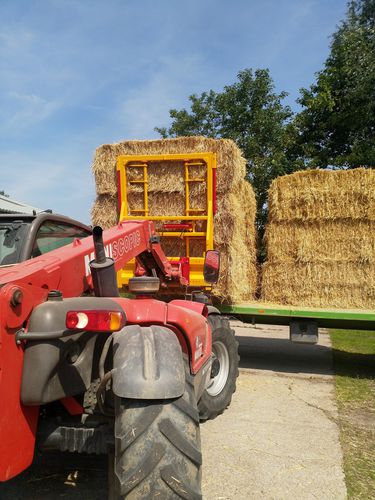

Bale spear Fred 3-4HD

3-tine

CategoryBig bales SubcategoryFred bale grab NameFred 3-4 Heavy Duty Article numberMHFRED34HD Length - 40 cm Width - 175 cm Height - 230 cm Weight - 530 kg Max. load - 1500 kg Max. bale size (l x w x h) - Max. pressure hydraulic circuit - 180 bar Description Description Fred 3-4 Heavy Duty bale grab The Fred 3-4 Heavy Duty bale grab is a variant of the commonly used Fred 3-4 and is specially made for intesive use. The grab picks up a maximum of three to four large straw or hay bales. The grab is connected to the hydraulic system of the telescopic handler, front loader, wheel loader or crane. Suitable for - 3 bales of 90 cm high - 4 bales of 70 cm high Performed with - 2 beams to additionally support an extra bale, thebeams can be retracted for loading - removabel thick axles (Ø50 mm) with hooks, so that wearing parts can be replaced. - heavy cylinder - strong cylinder mounting with special bolt with lubrication groove - reinforced lower corners - 12 specially developed hooks made of high quality steel - 3 conical bushes for mounting the straight removabel pins Advantages Fred 3-4 HD bale grab - the hooks turn deeply into the bales and clamp and pull them tight against the main frame - when the grab is tilted forward, the bales remain firmly clamped due to the turned-in tines - suitable for intesive use Options - removable brackets - 2 or 3 removable pins - 2 hydraulic hoses and couplings - overpressure relief valve
