Bale spear Fred 2-3

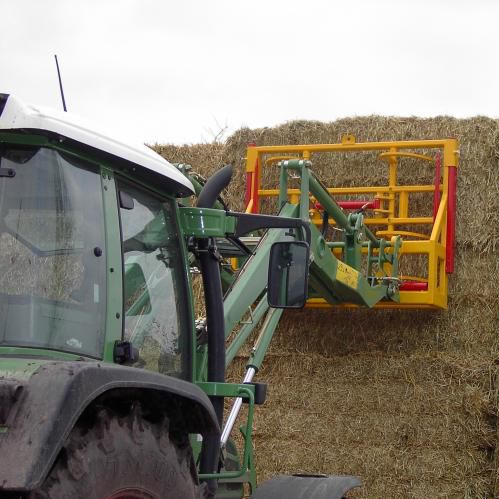

Category Big bales Subcategory Fred bale grab Name Fred 2-3 Article number MHFRED23 Length - 40 cm Width - 175 cm Height - 135 cm Weight - 360 kg Max. load - 1125 kg Max. bale size (w x h) - 120 x 120 cm Max. pressure hydraulic circuit - 180 bar Description The Fred 2-3 picks up a maximum of two to three large straw or hay bales. The grab is connected to the hydraulic system of a telescopic handler, front loader, wheel loader or crane. Suitable for - 2 bales of 90 cm high - 3 bales of 70 cm high Performed with - 6 specially developed hooks made of high quality steel - 3 conical bushes for mounting the straight removable pins Advantages Fred 2-3 bale grab - the hooks turn deeply into the bales, and clamp and pull them tight against the main frame - when the grab is tilted forwards, the bales remain firmly clamped Options - removable brackets - 2 or 3 removable pins - 2 hydraulic hoses and couplings - overpressure relief valve - 2 telescopic beams (red) on the side of the grab, against which the top bale rests These insert beams are required when picking up 3 bales of 70 cm high.
