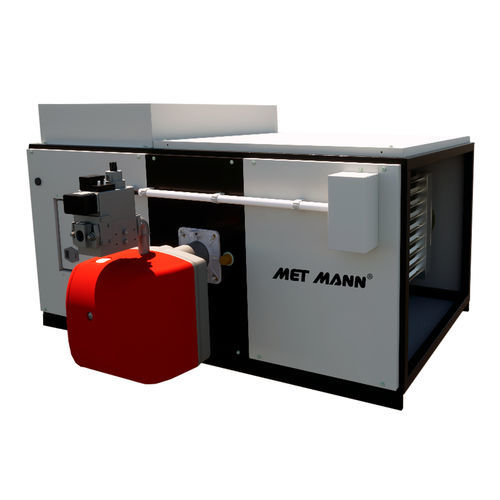

Diesel hot air generator MM-H/W/CP Series

diesel fuelgaselectric

Our MM-H/W/CP hot air generators for industrial drying processes can run on diesel or gas and develop a heat output of 50 to 390 kW. The hot air supplied to the drying process has a thermal jump from 16°C to 37°C and a large supply of air for rapid drying without altering the physical properties of the product. For other types of drying where more temperature is required, we can carry out a specific study. The range is made up of different models with temperature differences, air flows and pressures suitable for any type of drying. •MM-H Thermal head of 28-30°C with available air pressure from 110 to 270 Pa. •MM-W Thermal head of 28-30°C with available air pressure from 140 to 270 Pa. •CP Thermal head of 18-20°C and available air pressure from 160 Pa to 280 Pa. Characteristics - Completely compact and robust equipment. - Tubular heat exchanger with an efficiency greater than 90%. - Exterior finish in oven-dried polyester paint. - Thermal insulation by air chamber and/or fiberglass. - Centrifugal fan group with one or two turbines depending on the model. - Electrical control panel and protection according to European standards. - Air outlet on the left or right side depending on the needs of the installation. - Possibility of manufacturing customized equipment according to technical specifications (air flow, pressure, thermal jump, ATEX motors, etc.).
