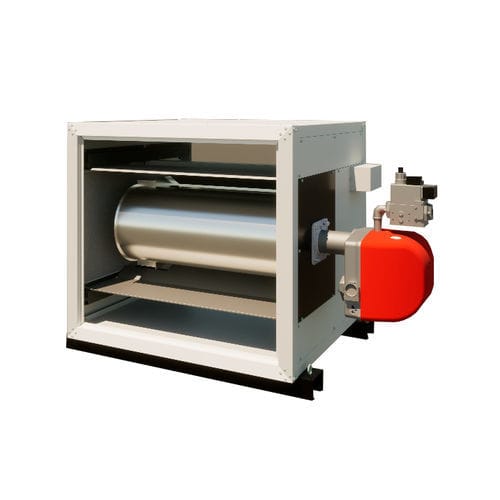

Our modules to increase the air temperature incorporate a combustion chamber and heat exchanger with high thermal performance, it has an insulated exterior paneling and a temperature control panel to order the start and stop of the burner and fan.
Our modules to increase the temperature are designed to be applied in drying process facilities where it is required to increase the temperature of the air driven by an external air fan.
Depending on the air flow, the thermal increase can range from 20ºC to 60ºC.
The air flow treated by the equipment can range from 2,150 m3/h to 18,000 m3/h depending on the selected model.
The fuel used by the burner can be diesel, natural gas or propane gas.
Characteristics
- High performance combustion oven, made of AISI-430 stainless steel in the areas most exposed to heat.
- Exterior panel made of galvanized steel, lacquered in polyester powder and oven-dried.
- Thermal insulation of the areas most exposed to heat.
- Electrical panel for control and safety according to European regulations.
- Control thermostats (Fan/Burner/Thermal safety).
- Hot air outlet through grilles or duct network.
- Security system to control the correct depression in the combustion chamber.
- Low noise centrifugal fan (optional).
- Room thermostat (optional).
